產品介紹 |
|
|
|
| 產品編號 |
LV429210 |
| 產品簡稱 |

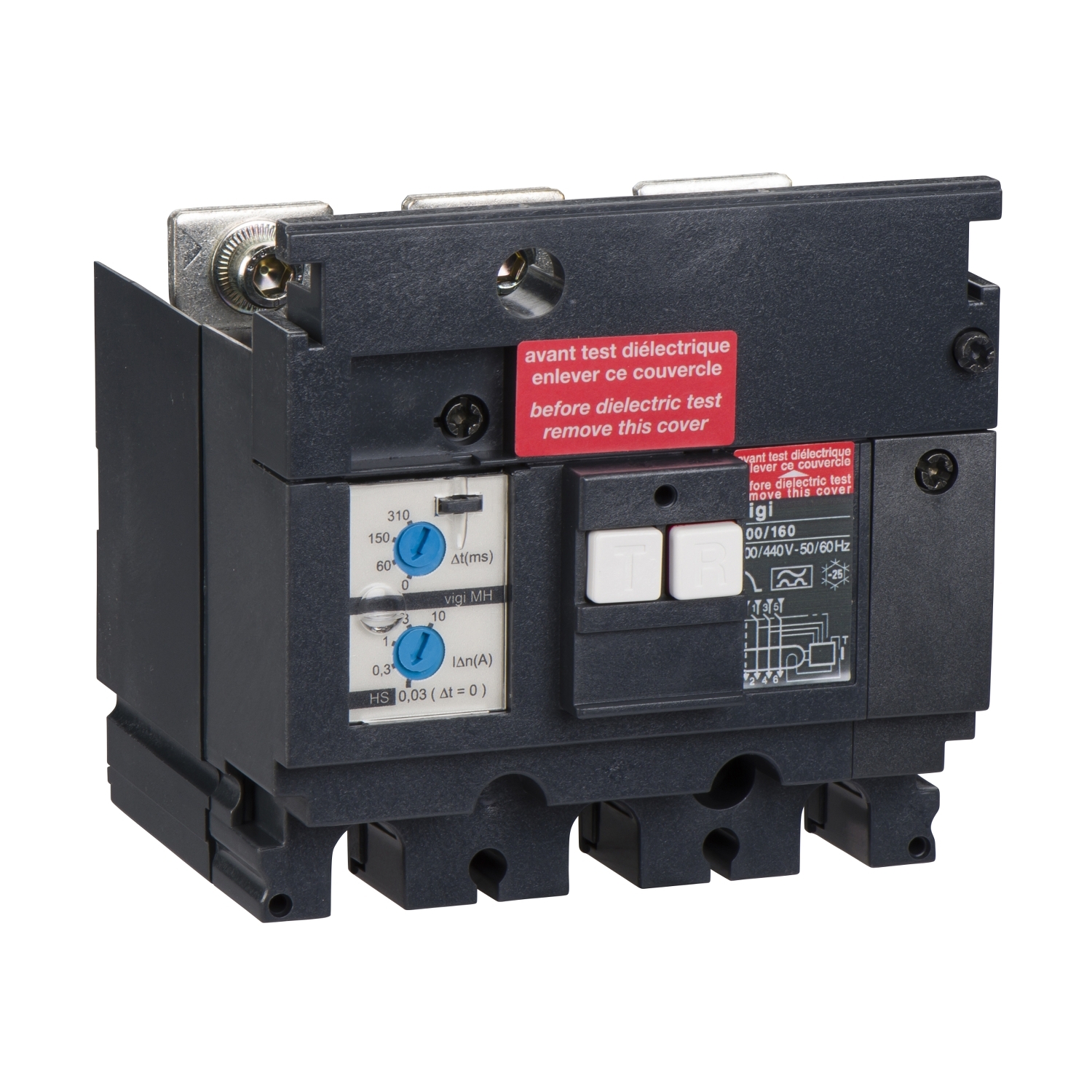

接地漏電模組 Compact Vigi MH - 30..10000 mA - 200..440 V - 3 級 |
| 產品描述 |
It is a MH Vigi add-on module for 3 poles Compact NSX 100/160 and EasyPact CVS 100/160. It provides an earth-leakage protection when installed directly on the device terminals. It directly actuates the trip unit in case of insulation fault. The addition of this Vigi add-on module does not modify Compact NSX 100/160 or EasyPact CVS 100/160 characteristics. It is a MH type module in 3 poles version, self-powered by the input voltage. The operational voltage for the Vigi add-on is from 200VAC to 440VAC 50/60Hz. The sensitivity is adjustable from 30mA to 10A, the time delay is also adjustable. The dimensions of the circuit breaker equipped with this module are 105mm x 236mm x 86mm. |
| 官網 |
前往 |
| 型錄 |
下載 |
| 產品參數表 |
下載 |
| 認證資料 |
REACH文件 |
RoHS文件
|
| 合格日期 |
1919 |
RoHS |
符合 |
| ETIM-6.0 |
EC001021 |
