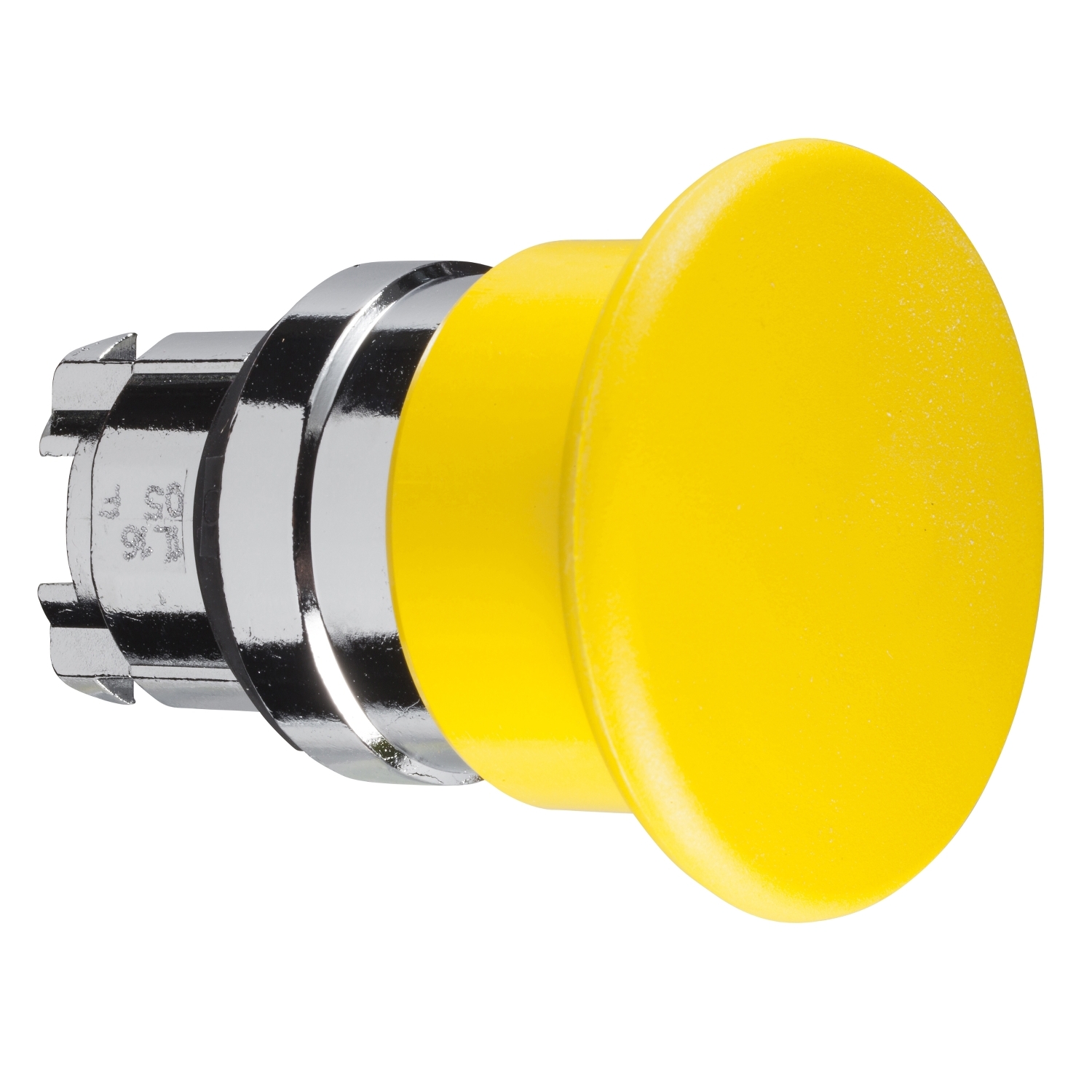

按鈕頭 (蘑菇頭) 黄色按鈕頭 (φ40蘑菇頭)

產品編號	ZB4BC5
產品簡稱	按鈕頭 (蘑菇頭) 黄色按鈕頭 (φ40蘑菇頭)
產品描述	This Harmony XB4, 40mm mushroom yellow button head operates with a spring return / impulse mechanism. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
官網	前往
型錄	下載
產品參數表	下載
認證資料	REACH文件 \| RoHS文件
合格日期	627	RoHS	預防性合規 (產品不在 EU RoHS 法規範圍內)
ETIM-6.0	EC001038	停產日期	下載
