產品介紹 |
|
|
|
| 產品編號 |
LV516332 |
| 產品簡稱 |
circuit breaker EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3P 3d |
| 產品描述 |
EasyPact CVS160F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS160F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1). |
| 官網 |
前往 |
| 型錄 |
下載 |
| 產品參數表 |
下載 |
| 認證資料 |
REACH文件 |
RoHS文件
|
| 合格日期 |
1917 |
RoHS |
符合 |
| ETIM-6.0 |
EC000228 |
停產日期 |
下載 |
| 產品編號 |
N1MGLV516332 |
| 產品名稱 |
TE CVS160F 3P125A 70/36KA LV516332
CVS160F TM125D 3P3D |
| 產品描述 |
CVS160F TM125D 3P3D
|
| 尺寸 |
|
| 型錄 |
|

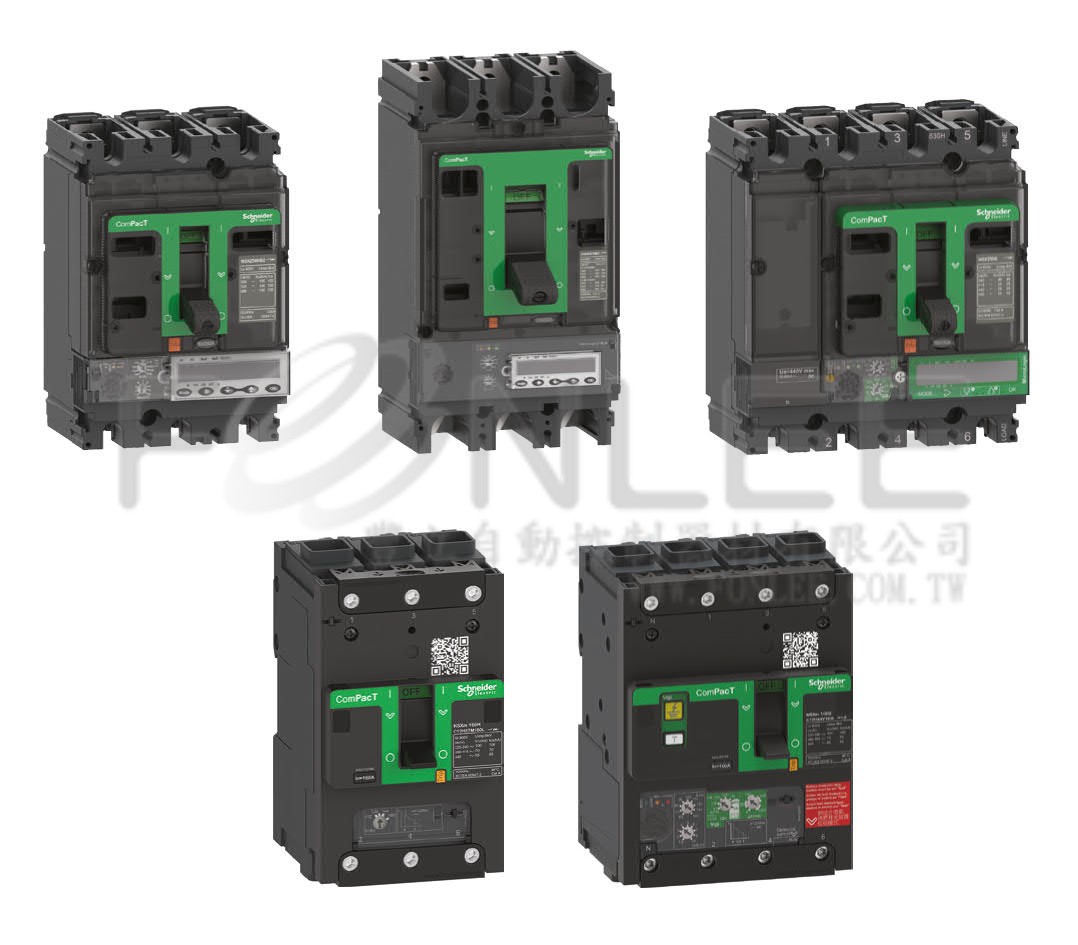

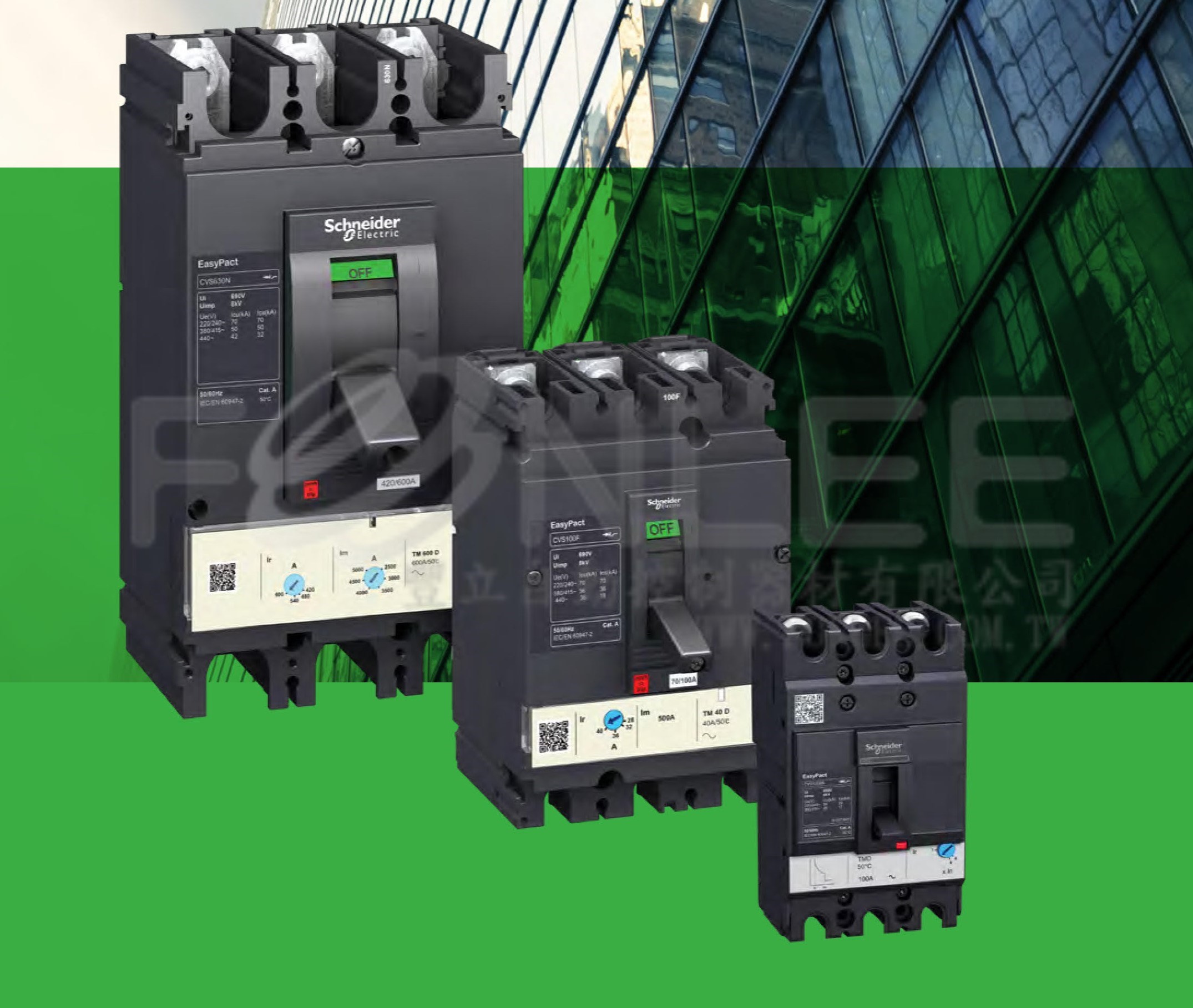

| 產品圖 |
| 1 |
 |
454 KB |
|
| 2 |
 |
120 KB |
|
|
| 說明書 |
|
| 規格 |
|
| 產品參數表 |
|
| 官網 |
|
| 型錄 |
|
| 認證資料 |
|
| 合格日期 |
|
RoHS |
|
| ETIM-6.0 |
|
停產日期 |
|
|
點圖放大
